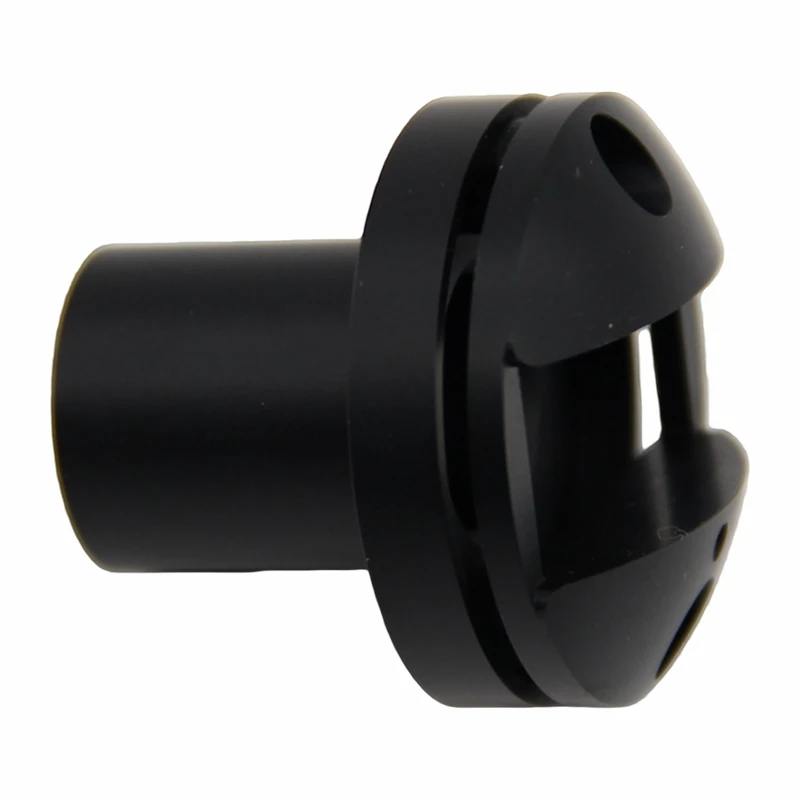

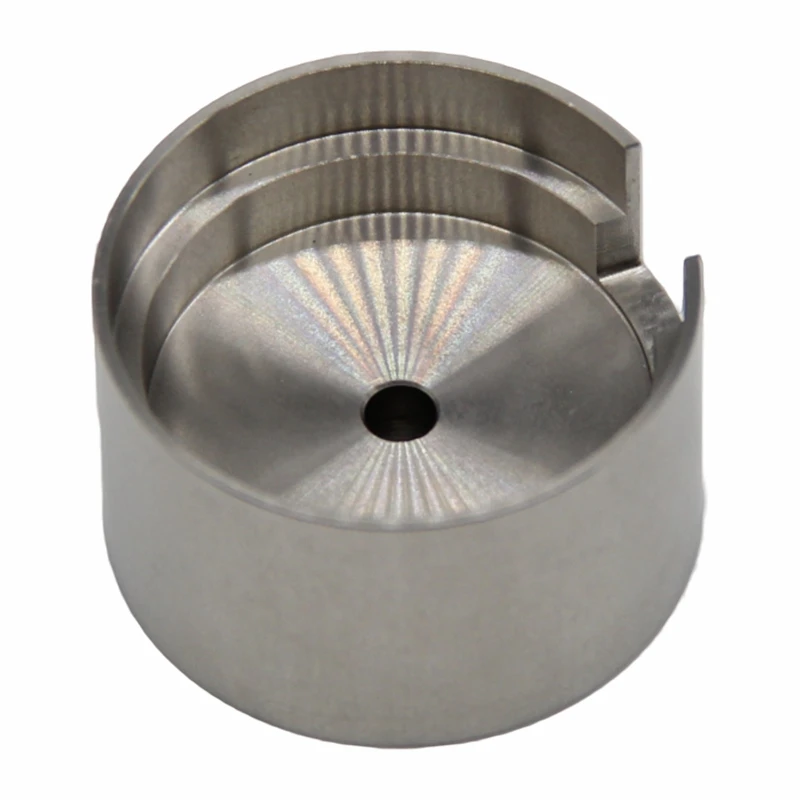

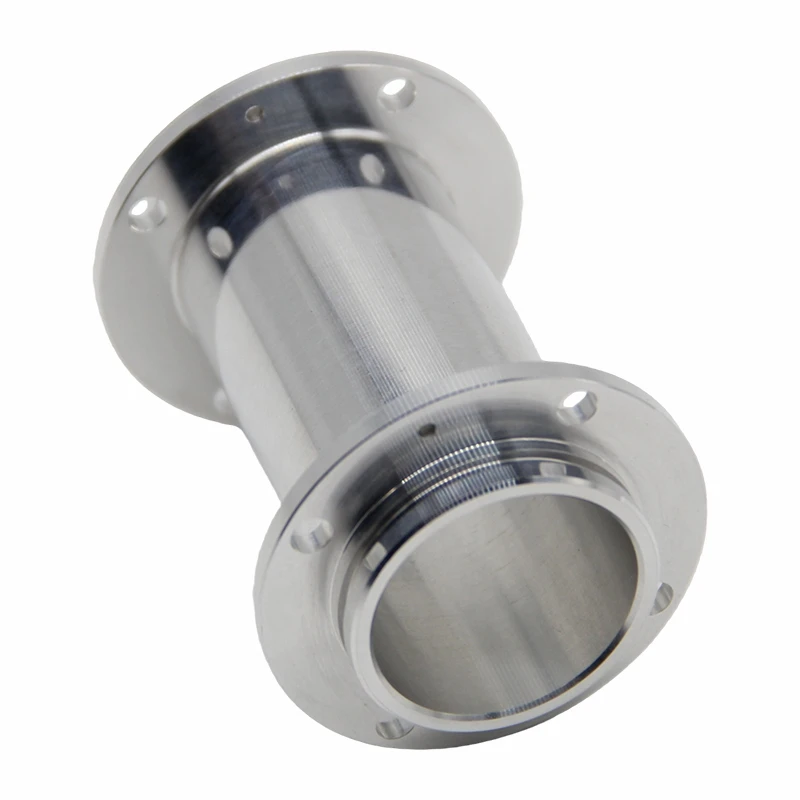

Advanced Materials Machining

The selection of data for aerospace milling parts directly determines flight safety and performance. We deepen our understanding of the background of aviation data engineering and assist clients in preventing serious consequences such as lack of strength margin, high-temperature creep failure, or corrosion fatigue fracture caused by incorrect selection of data.

The three central logics for selecting aviation component data include strength to weight ratio, temperature resistance, and fatigue wear resistance. Typical applications correspond to different parts: the fuselage structure is mostly made of aluminum alloy, the hot end of the engine uses nickel based high-temperature alloy, the landing gear relies on ultra-high strength steel, and the internal structure is commonly made of titanium alloy.

Detailed description of main aviation data processing：

Material Type	Typical Grades	Strength-to-Weight Ratio	Main Machining Challenges	Our Specialized Solutions	Typical Applications
Aluminum Alloys	7075-T651 / 7050-T7451 / 6061-T6	High	Stress relief distortion / Chatter in deep cuts	Precision stock removal / Vacuum fixturing / Pre-stretched plates	Fuselage frames / Wing spars / Skin stiffeners
Titanium Alloys	Ti-6Al-4V / Ti-6Al-4V ELI / Ti-5553	Extremely High	Low thermal conductivity / Spring-back / Heavy cutting	TiAlN coated tools / High-pressure coolant / Low speed high feed	Landing gear / Engine mounts
Nickel-Based Superalloys	Inconel 718 / Inconel 625 / Waspaloy	High at elevated temp	Extremely high cutting forces / Work hardening	CBN tools / Multiple light passes / Constant force strategy	Turbine disks / Combustion liners / HPC blades
Ultra-High Strength Steel	300M / 4340 / 15-5PH	Extremely High	Brittleness after hardening / High cutting forces	Post-heat treatment finishing / Carbide tools	Landing gear main struts / Door hinges
Cobalt-Chromium Alloys	CoCrMo	High	Rapid tool wear on spindles	Diamond tools / EDM assistance	Turbine blades / Hot section seals
Composites	Carbon Fiber (CFRP)	-	Delamination risk / Poor conductivity	Specialized diamond tools / Vacuum fixturing	CFRP structural components

5-Axis Machining Capability

Material traceability and compliance: AMS/STM standard supply certificates are attached to each batch of raw materials. We have stopped PMI on-site spectral analysis (piece by piece or batch by batch verification), and all suppliers are included in the AVL qualified list. The batch number of materials is fully bound to the shipment record to ensure that aerospace milling parts meet aviation level compliance requirements:

Aerospace milling parts often have aerodynamic surfaces, topology optimized weight reducing cavities, and multi-directional assembly features. Repeated clamping in three axes can easily lead to cumulative errors exceeding tolerances (4 clamping cycles may accumulate 0.06mm). Five axis linkage clamping can completely solve this problem.

Equipment matrix:

Machine Type	Brand / Model	Table Size	5-Axis Accuracy	Suitable Parts
Horizontal 5-Axis Machining Center	DMG MORI DMU 85	850 × 600 mm	±0.003 mm	Large engine brackets / Hydraulic manifolds
5-Axis Turn-Mill Composite	Mazak INTEGREX	Φ640 × 1500 mm	±0.003 mm	Shafts + complex milling hybrid parts

Five axes can mask synchronous five axis linkage (blades, impellers, spiral surfaces), 3+2 positioning five axes (polyhedral structure, multi-directional hole system), and five axis turning milling composite (completing complex rotating bodies+milling in one go).

Typical complex aviation component five axis machining case:

Case 1: Titanium alloy hydraulic manifold

Features: 18 interlaced channels, 5 processing directions, positional accuracy ± 0.004mm, coaxiality 0.003mm.
Challenge: Interstitial vibration of ducts, thin-walled deformation, and elastic rebound of titanium alloy.
Plan: Synchronize five axes+specialized vibration damping tool holder+CMM process response.
Result: 100 FAI were fully connected, with a critical aperture Cpk of 1.89.

Case 2: Inconel 718 turbine support ring

Features: 36 evenly distributed device holes, with a single degree of ± 0.008mm on the surface.
Plan: Specialized lifting fixtures+CBN cutting tools+tool monitoring.
Result: The appearance Ra is 0.8 μ m, and the tool cost is reduced by 35%.

Five axis machining engineering value (table comparison):

Comparison Dimension	3-Axis Multiple Setups	5-Axis Single Setup	Improvement
Number of Setups	4–6 times	1 time	80% reduction
Accuracy	±0.015 – 0.060 mm	±0.002 – 0.005 mm	10x better
Auxiliary Time	4–6 hours	0.5–1 hour	75% reduction
Custom Fixtures	3–5 sets	1 set	70% reduction
Overall Lead Time	15–20 days	7–10 days	50% shorter

Precision & Tolerance Control

The accuracy of aerospace milling parts directly affects aerodynamic efficiency, sealing performance, and fatigue life. If the blade profile of the initiator exceeds the tolerance of 0.005mm, it may result in a 1.5-3% decrease in aerodynamic efficiency, and if the hydraulic joint exceeds the tolerance, there is a risk of high-pressure seal failure. We strictly adhere to the ASME Y14.5 GD&T specification.

Precision tolerance aerospace parts matrix:

Tolerance Type	Standard Capability	Limit Capability	Typical Aerospace Requirements
Linear Dimensions	±0.005 mm	±0.002 mm	Mating surfaces ±0.005 – 0.025 mm
Concentricity	0.005 mm	0.002 mm	Shaft-hole fits 0.005 – 0.010 mm
Flatness	0.003 mm	0.001 mm	Sealing surfaces 0.005 mm
Position	±0.005 mm	±0.003 mm	Pattern location ±0.010 – 0.025 mm
Surface Roughness	Ra 0.4 μm	Ra 0.2 μm	Sealing surfaces Ra 0.4 μm

Precision assurance systematic process wrist:

Constant temperature workshop (20 ± 0.5 ℃), unified five axis one-time clamping reference, tool dynamic compensation, SPC real-time control, CMM closed-loop response.

Challenges and countermeasures for accuracy of aviation data:

Pre tension and aging treatment are adopted for residual stress deformation of aluminum 7075; The elastic rebound of titanium Ti-6Al-4V is treated with parameter compensation and light cutting; Inconel 718 work hardening uses sharp cutting tools and ample cooling.

Quality Control & Inspection

Aerospace milling parts must meet the AS9100D "zero defect" culture (escape rate<50 PPM), far exceeding ordinary ISO 9001. We support customer source inspection.

Full process quality control process (depicted in the flowchart):

Raw data storage:

material certificate+PMI+sampling inspection

First Article Inspection (FAI-AS9102):

100% inspection, batch consumption after report issuance

Process Inspection (IPQC):

SPC monitoring, Cpk<1.33 shutdown

Final inspection (OQC):

CMM full inspection+AQL sampling inspection+visual inspection

Shipment file package+10-year archive

Testing equipment matrix:

Equipment	Brand / Model	Measurement Accuracy	Primary Use
Coordinate Measuring Machine (CMM)	Zeiss Contura G2	±0.0008 mm	Full 3D dimensional inspection & GD&T
Blue Light 3D Scanner	GOM ATOS Q	±0.003 mm	Complex surface / Blade profile scanning
PMI Spectrometer	Olympus Vanta M	-	On-site material composition verification
Industrial CT Scanner	Zeiss METROTOM	±0.005 mm	Internal defect detection (non-destructive)
Surface Roughness Tester	Mitutoyo SJ-410	Ra 0.01 μm	Surface finish measurement

List of documents available: AS9102 FAI report, CMM report, material certificate, PPAP, CoC, 8D report, etc.
Quality performance: FAI pass rate of 98.9%, critical dimension Cpk ≥ 1.67, escape rate<25 PPM, customer acceptance rate of 99.3%.

Lightweight & Structural Optimization

For every 1 kilogram reduction in weight, an aircraft can save approximately $2000-5000 in fuel costs throughout its entire lifecycle. Aerospace milling parts are lightweight through data exchange, topology optimization, and integrated construction. CNC five axis machining can complete complex internal cavities that cannot be achieved by casting.

Topology optimization and CNC milling processing plan: DFM intervention checks manufacturability (minimum tool diameter, aspect ratio), provides correction proposals and scoring reports. Maximizing the accessibility of concave features in five axis machining.
Thin wall aerospace milling process: When the wall thickness of the aluminum alloy frame is 1.0-2.0mm, process reinforcement support, forward milling, low cutting depth+wax filling support are used to control the flatness of 0.05mm.
Lightweight effect quantification case: The titanium alloy base of the drone has been reduced from 485g to 198g (a weight reduction of 59%), and its strength meets the overload requirement of 2.5g. Construction integration case: 7 parts merged into 1 piece, reducing weight by 22% and eliminating micro motion failure.

FAQ

What materials can be processed for use in the aerospace industry?

The mainstream includes high-performance alloys such as aluminum 7075/7050, titanium Ti-6Al-4V, Inconel 718, 300M, etc.

What level of tolerance can be achieved for aerospace milling parts?

Standard capacity ± 0.005mm, limit ± 0.002mm, supporting strict GD&T requirements.

Do you provide five axis milling services for processing complex aerospace components?

Yes, it supports synchronous five axis, 3+2 positioning, and five axis turning and milling composite, and is skilled in complex surfaces and thin-walled structures.

How to ensure traceability of aerospace milling parts?

From raw material certificates, PMI verification, FAI reports to shipment records, the entire batch is bound and archived for more than 10 years.

Can you support lightweight and topology optimized aerospace components?

Supporting DFM intervention in topology optimization and thin-walled five axis machining, we have helped customers achieve a 59% weight reduction case.
