Accuracy and Tolerance: The Dimensional Control Capability of CNC Milled Prototypes

The dimensional accuracy during the prototype stage directly determines the effectiveness of assembly verification and functional testing. Our precision CNC milling system relies on imported 5-axis machining centers and constant temperature workshops to stably achieve engineering grade tolerances on various materials such as aluminum alloys, steel, and engineering plastics, and provide complete inspection reports that comply with ISO 2768/ASME Y14.5 GD&T specifications.

Standard accuracy	Precision accuracy	Ultra precision accuracy	Minimum aperture
±0.1mm	±0.05mm	±0.01mm	0.3mm
ISO 2768-m medium grade	ISO 2768-f precision grade	5-axis+CMM full inspection	Micro feature processing

Tolerance level	size range	applicable prototype type	testing method	reference standard
± 0.1mm	full size	appearance verification parts, conceptual models, non-fitting structural parts	vernier caliper self-inspection	ISO 2768-m
± 0.05mm	≤ 500mm	assembly verification parts, Common functional prototypes	Optical imaging instrument	ISO 2768-f
± 0.02mm	≤ 300mm	precision fitting parts, Medical Device Prototype	CMM three coordinate	ISO 2768-v
±0.01mm	≤ 150mm	Aviation structural components, optical bases, high-precision transmission components	CMM full inspection+blue light scanning	ASME Y14.5

GD&T geometric tolerance support: Our engineers are familiar with the ASME Y14.5 geometric tolerance annotation system and can handle all types of geometric tolerance requests, including flatness, cylindricity, position, concentricity, etc. The CNC machined prototype parts are accompanied by a CMM measurement report upon shipment, with clear and traceable values.

Design support talent: full process engineering collaboration from drawings to manufacturable prototypes

Excellent CNC milling prototype service goes beyond machining itself. We equip dedicated engineers for every rapid CNC prototyping project to complete DFM manufacturability analysis within 24 hours after drawing submission, identify potential risks, assist customers in handling design issues before first piece processing, and prevent expensive rework costs.

STEP 01

Drawing acceptance and format verification

The engineer confirms the integrity of the document within 1 hour, identifies missing views, ambiguous annotations, or format compatibility issues, proactively contacts the customer to supplement information, and does not delay project initiation due to document issues.

STEP

IGES

DWG

SolidWorks

CATIA

DXF

STEP 02

DFM manufacturability analysis

Output a written DFM report within 24 hours, with a focus on evaluating five central risks: feasibility of minimum wall thickness, accessibility of deep cavity cutting tools, compatibility between tolerances and costs, plan for handling inverted features, and reserve of anodizing/electroplating allowances.

STEP 03

Engineer collaboration and rapid iteration

Support multi-channel communication through video conferencing, email, and instant messaging. Regarding complex prototypes, provide a phased iteration plan - prioritize the verification of key collaborative features, reduce overall trial production risks, and accelerate the development pace of rapid CNC prototyping.

STEP 04

Quotation and delivery confirmation

After completing DFM, synchronously output a detailed quotation, including itemized details of data fees, processing hours, surface treatment fees, and inspection fees. Standard parts will be delivered within 3 days, complex parts will be delivered within 5-7 days, and urgent channels will be negotiated separately.

STEP 05

Prototype entrustment and response loop

Accompanying the goods are inspection reports, material certificates, and qualification certificates. If design modifications are required after customer acceptance, they can be directly iterated on the basis of the original project without re quoting, ensuring the continuity of CNC milling prototype service.

STEP 06

Mass production linkage support

After the prototype verification, the process parameters, fixture plan, and inspection standards are well preserved, seamlessly connecting with the batch consumption quotation, truly completing the one-stop delivery from CNC milled prototypes to mass production.

Real case: In the shell drawings submitted by a medical device customer, the wall thickness of the key sealing groove was only 0.4mm, and the groove depth ratio was 12:1. After the first round of DFM analysis identified this risk, the engineer proposed to adjust the wall thickness to 0.8mm and optimize the groove bottom fillet. After the customer made the correction, the first piece was accepted in one go, saving about 3 weeks of rework cycle.

Material selection: Metal, engineering plastic, and composite materials are fully covered

Our CNC milled prototypes support over 20 types of engineering data, covering a full range of selections from aerospace grade titanium alloys to medical grade PEEK. Different prototype validation intentions determine the data selection strategy - functional test pieces need to use data consistent with the final mass production in order to obtain useful mechanical and installation data.

Metal Materials

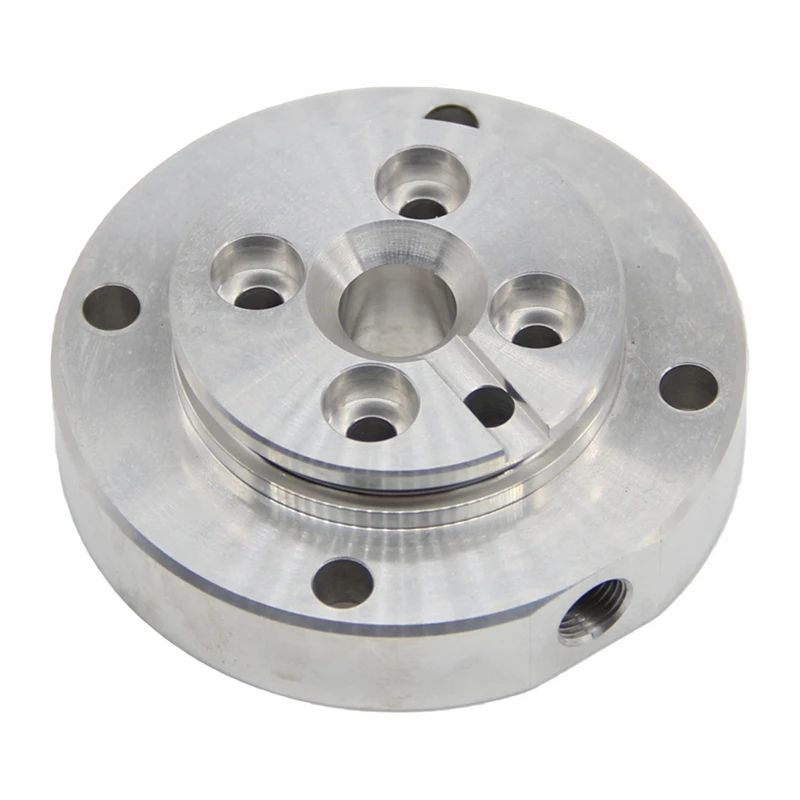

Aluminum alloy:6061-T6 / 7075-T6 / 2024-T3

Aluminum prototype CNC is the most popular choice. Excellent machinability, lightweight, and capable of anodizing. 6061 has the highest comprehensive cost-effectiveness; 7075 has a strength 40% higher and is suitable for high stress parts; 2024 anti fatigue, preferred for aviation.

lightweight

Anodizing capability:cost-effective

stainless steel:303 / 304 / 316L

Strong corrosion resistance, 316L meets medical grade cleanliness requirements. Suitable for metal prototype machining requirements in medical devices, food touchpoints, and marine equipment.

corrosion-resistant:medical-grade

high-intensity

Carbon steel/tool steel:1045 / 4140 / D2 / H13

High hardness, high strength, suitable for functional verification parts and mold prototypes. After heat treatment, the hardness of tool steel can reach HRC 60+, which is used for extreme working condition testing.

high-intensity
Heat treatable
wear-resistant
copper alloy

01/

C360 brass/T2 purple copper

Excellent conductivity and thermal conductivity, with excellent processability. Suitable for custom CNC milled parts requirements for electrical connector prototypes, heat dissipation substrates, and high-frequency communication.

highly conductive

high thermal conductivity

Easy to process

titanium alloy

02/

Ti-6Al-4V (Grade 5)

One of the strongest metal materials with excellent biocompatibility. It is the top choice for aviation structural components and implantable medical device prototypes, as well as a typical challenge for 5-axis CNC prototype machining.

high specific strength

Biocompatibility

Aviation/Medical

aluminum-magnesium alloy

03/

5052-H32 / 5083

Excellent resistance to seawater corrosion and outstanding welding function. Prototype of shells and structural components suitable for ships, marine equipment, and military equipment.

seawater corrosion resistance

Weldable

Ship/Military Industry

Engineering Plastics

04/

PEEK

Medical/Aviation/High Temperature Class

Temperature resistance up to 260 ° C, chemical corrosion resistance, biocompatibility certified by ISO 10993. It is the most high-end selection in plastic CNC prototypes, commonly used for orthopedic implant prototypes and semiconductor equipment parts.

high temperature resistance

Biocompatibility

Chemical resistant

05/

Delrin(POM)

Homopolymer/copolymer type

Excellent self-lubricating function, good dimensional stability, and wear resistance. CNC prototype machining widely used for motion functional components such as gears, pulleys, and bearing seats, with high machining accuracy and minimal warping.

self-lubricating

06/

Stable scale

Sports parts

Nylon / PC / ABS

PA6 / PA66 / PC-ABS

The most cost-effective option for engineering plastics. Nylon has good toughness; PC has high transparency and impact resistance; ABS is easy to process and has wide compatibility in surface treatment. Prototype for verifying the appearance and structure of suitable consumer product casings and electronic product casings.

cost-effective

Appearance verification

Paintable

Free consultation on material selection: unsure which type of information to choose?

Upload the drawings and describe the operating conditions. Our data engineer will combine force analysis, temperature range, weight requirements, and budget constraints to provide the optimal data proposal for your CNC milled prototypes project, and attach a data specification sheet for reference.

Appearance treatment: from standardized cutting surface to industrial grade protective coating

Appearance treatment is an indispensable part of the CNC milled prototype parts certification process. Choosing an appearance treatment method that fits the final product specifications can ensure that the appearance review and functional testing data during the prototype stage have real reference value for mass production decisions.

processing technology	roughness	Explanation and Applicable Scenarios
As machined standard cutting surface	Ra 1.6–3.2μm	Directly from the standard cutting surface of the machine tool, retaining the cutting pattern without additional post-processing. The lowest cost and shortest delivery time, suitable for structural functional verification and internal non appearance CNC milled prototypes.
Applicable: All materials
Sandblasting Beam Blasting	Ra 1.0–2.5μm	Uniform matte texture, eliminating knife marks and machining marks, providing an ideal substrate for anodizing. It is the preferred pre-treatment process for verifying the appearance prototype of consumer electronics.
Applicable: Aluminum, Steel, Titanium

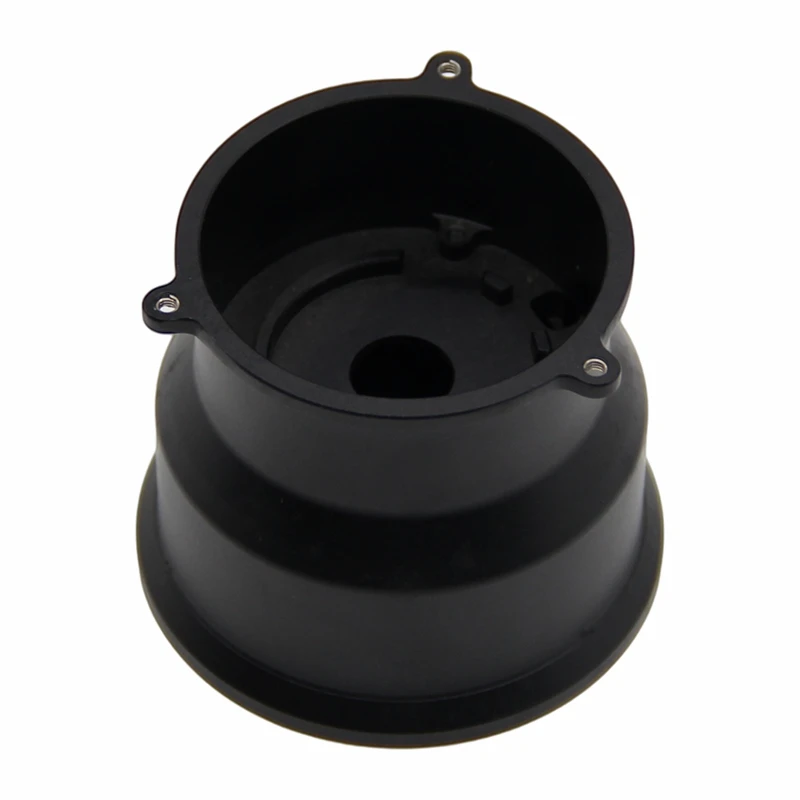

Anodizing II/III	Film thickness 5-75 μ m	Type II decorative anode (5-25 μ m, full-color options available) is suitable for appearance verification; Type III hard anode (25-75 μ m, HV300-500) is suitable for functional wear resistance testing. It is necessary to reserve a film thickness allowance in advance in the aluminum prototype CNC drawing.
Applicable: Aluminum alloy
Electropolishing	Ra ≤0.4μm	Exclusive surface treatment for stainless steel prototypes to achieve mirror gloss and remove micro burrs on the surface, enhancing corrosion resistance. Standard process for prototypes of medical devices and food contact products.
Applicable: Stainless steel
Powder Coating	Film thickness 60-120 μ m	Weather resistant, wear-resistant, and colorful, all available in RAL color range. Suitable for outdoor equipment casings and industrial product appearance verification prototypes, with good impact resistance.
Applicable: Aluminum, Steel
Electroplating (nickel/chromium/gold)	Coating 5-50 μ m	Nickel plating enhances hardness and corrosion resistance; Chrome plating achieves a decorative mirror effect; Gold plating is used for high-frequency electrical contacts. Suitable for functional verification of custom CNC milled parts for electrical connectors and precision sensors.
Applicable: Copper, Steel, Aluminum
Painting/Screen Printing	Custom color	Pantone/RAL color scheme accurately matches, allowing for screen printing of logos, logos, graduations, and other content. The most suitable appearance prototype for consumer goods to present the final product texture at the design review meeting.
Applicable: All materials

Quality control: Each CNC Milled Prototype comes with a complete inspection report

The quality of prototype parts is not determined by sampling, but is controlled in each process. We have established a four level quality control process for all CNC milled prototypes, from first article confirmation to full inspection upon shipment. We provide CMM measurement reports, material certificates, and qualification certificates along with the goods, making every dimension data traceable.

01-Programming and Process Inspection

CAM engineers conduct a tripartite review of the program, tool path, and fixture plan before machining, with a focus on verifying the machining accessibility and tool life control of key tolerance features.

02-First piece full-size inspection

100% inspection of key dimensions for each batch of first article according to the drawings, and issuance of FAI first article inspection report. If any deviation is found, stop the machine immediately for adjustment, and confirm that it is qualified before mass consumption.

CMM three coordinate system

Optical imaging device

03-Process Inspection

The operator performs self inspection every 5-10 pieces processed, and the IPQC inspector conducts spot checks according to the rhythm. Special inspection tools are used to quickly inspect key dimensions to avoid batch deviation.

special inspection tool profilometer

04-Shipment inspection and report

CMM full inspection or sampling inspection before shipment (upon order request), accompanied by a blue light 3D scanning comparison report (optional). The accompanying documents include: inspection report, mill certificate, and certificate of conformity.

Blu-ray scanning

Material Certificate	Certification and regulatory system
Quality management system	ISO 9001:2015
Aerospace Quality	Medical Device Quality
Dimensional tolerance specification	ISO 2768 / ASME Y14.5
List of accompanying inspection documents	CMM Coordinate Measurement Report (including biased chromatogram)
Original Material Composition Certificate (Mill Certificate)	Surface treatment film thickness/hardness testing report
Product Qualification Certificate (including batch traceability code)
Why do prototypes also require strict quality control? The detection data in the prototype stage is the direct basis for product design decisions. A functional prototype with a size deviation of 2% may lead to incorrect judgment of the entire assembly plan, resulting in several times the cost during mass production. We have different quality control standards for each precision CNC milling prototype from the complete production parts - because we deeply understand the value of prototype data.

FAQ

What is the standard delivery time for CNC milled prototypes?

Standard parts (3-axis machining, conventional materials, standard tolerances) are usually delivered within 3-5 working days. Complex parts (5-axis machining, titanium alloy/PEEK material, ± 0.01mm tolerance) require 5-8 working days. If there is an urgent need, you can contact our engineering team to evaluate the urgent channel (usually compressed to 1-2 days, depending on the machine schedule). The delivery time for all CNC milled prototypes starts from the confirmation of drawings and approval of DFM.

What file formats are required for submitting drawings? Can I place an order if the drawings are incomplete?

We accept STEP,IGES,DWG,DXF,SolidWorks (.sldprt),CATIA (.catpart),Parasolid (.x_t) Waiting for all mainstream formats. It is recommended to provide both 3D model files (STEP) and 2D engineering drawings (DWG/PDF) to ensure complete annotation of tolerances, thread specifications, and surface treatment requirements. When the drawings are incomplete, our CNC prototype machining engineer will proactively contact you to supplement them, so as not to delay the quotation due to drawing issues.

When should CNC machined prototypes be compared to 3D printed prototypes?

Functional prototype CNC milling should be given priority in the following scenarios: ① It is necessary to verify the mechanical properties (strength/stiffness/fatigue life) of real materials; ② Precision fitting tolerance (within ± 0.1mm) is required; ③ Engineering grade surface treatment (anodizing/electroplating/powder coating) is required; ④ Used for functional testing on assembly lines or equipment; ⑤ Medical or aviation prototypes that require testing by regulatory agencies (FDA/CE). 3D printing is more suitable for early concept validation and complex internal cavity structures. The two processes are not mutually exclusive, and we also provide free process selection suggestions.

What is the minimum order quantity for custom CNC milled parts?

The minimum order quantity is 1 piece, supporting single piece prototype sampling. We do not set any minimum amount threshold and quote based solely on actual processing costs. Batch stage enjoys tiered price discounts: 1-9 pieces are the prototype price; 10-49 items reduced by approximately 15-25%; More than 50 pieces will enter the small batch price range, and the actual quotation will prevail. All CNC milled prototypes orders enjoy equal engineering support and quality assurance.

What content does the precision CNC milling inspection report include? Can detection items be specified?

The standard inspection report includes: a comparison table of measured dimensions and nominal dimensions, deviation values, qualified/unqualified judgments, and an explanation of the CMM measurement coordinate system. If there are special requirements, you can specify: blue light 3D scanning chromatogram, GD&T form and position tolerance (flatness/position/coaxiality) special report, surface roughness profiler report, hardness testing report (HRC/HV), etc. All precision CNC milling inspection reports are accompanied by the furnace batch number of the raw materials, which can fully trace the source of the materials.

Does your CNC milling prototype service provide NDA confidentiality agreement protection?

Yes, we provide standard NDA (Confidentiality Agreement) signing services for all clients and accept clients' own NDA texts. The uploaded drawings and technical information are only for quotation and production purposes and will not be used for any third-party sharing or internal product development reference. For CNC milled prototypes projects in sensitive industries such as aviation, healthcare, and military, we can also provide additional access control and information isolation measures. Please contact our business team for more information
