Texture Finish Options
We offer a wide range of plastic-prototype surface textures, from functional finishes to premium presentation grades. Roughness parameters are measured per ISO 4287.
Leather-Effect Texture
Simulates genuine-leather appearance and soft-touch feel - ideal for premium consumer electronics and automotive interiors. Typical Ra 1.6–6.3 μm, Rz 8–30 μm, texture depth 0.05–0.15 mm. Improves perceived quality and grip comfort.
01
Matte / Fine Grain Finish
Uniform low-gloss surface that helps hide fingerprints and minor scratches. Typical Ra 0.8–3.2 μm, Rz 4–15 μm. Common on medical-device handles and appliance housings.
02
Heavy Grain / Coarse Texture
Pronounced particulate feel with strong anti-slip performance. Typical Ra 3.2–12.5 μm, Rz 15–50 μm. Suited to tool housings and industrial prototypes.
03
High Gloss / Mirror Finish
Optical-grade smooth surface. Ra ≤0.4 μm, Rz ≤2 μm. Suited to transparent parts and high-end display models.
04
Custom Texture
We can replicate specific design patterns, geometric textures, or brand-logo textures from CAD files or physical reference samples.
Each texture option is supported by physical sample plaques (macro and multi-angle) showing real Ra/Rz values and recommended applications.
05
Technical Specifications
|
Parameter |
Specification |
Notes |
|
Compatible materials |
ABS, PP, PC, Nylon, PMMA, and other engineering plastics |
Flame-retardant and medical grades available |
|
Texture depth range |
0.01 – 0.3 mm |
Adjustable per texture type |
|
Surface roughness Ra |
0.1 – 12.5 μm (customizable) |
See Texture Options for typical values |
|
Tolerance |
±0.05 mm (surface) / ±0.1 mm (overall dimensions) |
Geometry-dependent |
|
Maximum part size |
800 × 600 × 400 mm |
Single-piece prototypes |
|
Standard lead time |
7–10 working days for textured prototypes |
Negotiable for complex custom jobs |
|
Surface processes |
CNC texturing, mold-texture transfer, bead blasting, polishing |
Full ISO 9001 process control |
Industry Applications
Textured plastic prototypes are widely used to validate appearance, tactile feel, functionality, and user experience early in development.
Automotive interior parts:
leather-effect and soft-touch grain textures for dashboards, center consoles, and handles. Used by Tier-1 automotive suppliers to optimize grip comfort and reduce design iterations.
Consumer-electronics enclosures:
matte and custom textures that improve anti-slip performance and premium feel. Used in appearance validation and user testing.

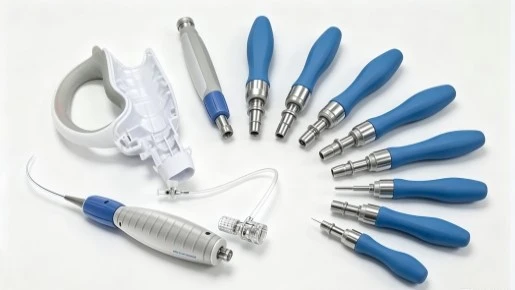

Medical-device handles:
uniform sand textures combined with biocompatible materials for comfortable grip and easy cleaning. Supports ergonomic validation and regulatory sample preparation.
Home-appliance appearance validation:
combinations of high-gloss and leather textures simulate final production quality for visual evaluation.
Why Choose Us
Years of precision-prototype manufacturing experience and dedicated surface-texturing expertise.
- ±0.05 mm surface precision: advanced CNC texturing processes deliver consistent depth and uniformity across functional and aesthetic prototypes.
- ISO 9001 certified process: strict quality control from incoming material to final shipment, with documentation supporting batch consistency and traceability.
- Fast turnaround: optimized workflow allows standard textured prototypes to be completed in as fast as 7 working days.
- Broad material compatibility: works with ABS, PP, PC, Nylon, PMMA, and other engineering plastics to meet diverse mechanical and visual requirements.
- Experienced finishing team: supported thousands of textured prototype projects for Tier-1 suppliers and consumer-electronics brands.
- Free texture sample plaques: evaluate leather, matte, grain, and other finishes in real plastic before committing to a custom project.
