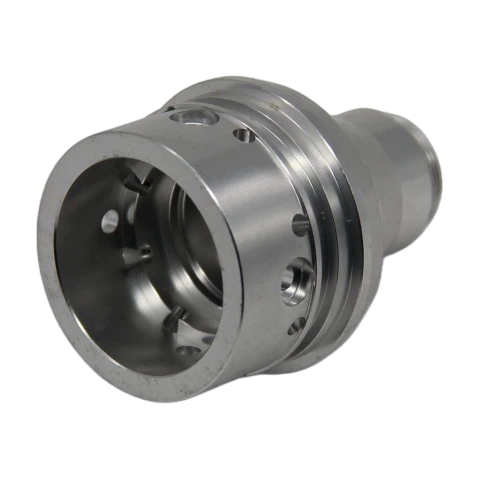

Key Capabilities of Our 5-Axis Milling Parts
Our 5-axis milling parts have the following central advantages to assist you in easily completing designs that are difficult to achieve with traditional machining:
Single clamping multi face machining:
5-axis linkage technology allows the tool to approach the workpiece from any angle, reducing the cumulative error caused by repeated clamping, especially suitable for complex geometric CNC parts.
01
Ultra high precision and repeatability:
The standard tolerance can reach ± 0.0005 "(± 0.0127mm), and special requests can be further optimized. The surface roughness can be stably controlled within Ra 0.4 μ m.
02
Complex surfaces and construction skills:
Successfully machining high difficulty features such as turbine blades, impellers, implant shapes, organic surfaces, and deep cavity inversions.
03
Efficient consumption sensitivity:
Supports small and medium-sized consumption from 1 prototype to 10000 pieces, separates automated tools and replaces systems, significantly shortening delivery cycles.
04
Excellent appearance quality:
The cutting tool always adheres to the optimal cutting angle, reduces vibration and tool marks, and improves the fatigue strength and aesthetics of the parts.
05
These talents stem from our continuous investment in advanced 5-axis machine tool clusters and experienced team of programming engineers. Each batch of 5-axis CNC machining parts undergoes CMM coordinate inspection and full-size reporting to ensure 100% compliance with your drawing requirements.
Technical Specifications
We strive to provide our clients with industry-leading precision 5-axis milled components. The following are typical technical parameters (can be customized according to detailed projects):
|
Parameter |
Specification Details |
Notes |
|
Number of Axes |
5-axis simultaneous / 3+2 positioning |
Full simultaneous 5-axis or positional machining |
|
Tolerance (Standard) |
±0.0005" (±0.0127mm) |
Tighter tolerances achievable for aerospace/medical grades |
|
Maximum Part Size |
X: 800mm × Y: 600mm × Z: 500mm |
Larger sizes available upon request |
|
Surface Roughness |
Ra 0.4μm ~ Ra 1.6μm |
Mirror polishing available |
|
Repeatability |
±0.005mm |
Guaranteed by high-rigidity machine tools |
|
Minimum Wall Thickness |
From 0.5mm (material dependent) |
Anti-deformation process optimization |
|
Inspection Equipment |
CMM, Laser Scanner, Roughness Tester |
Full dimensional inspection reports provided |
Through advanced CAM software imitation and collision detection, we ensure that the tight tolerance 5-axis parts maintain extremely high dimensional stability and geometric tolerance divergence even in complex constructions. All specifications can be verified and optimized based on your engineering drawings.
Materials We Machine
We specialize in processing a variety of high-performance materials, each of which has been verified by the process database and is suitable for the complex processing requirements of 5-axis CNC machining parts：
- Aluminum alloys (6061, 7075, etc.): lightweight, high-strength, easy to process, commonly used in aviation structural components and automotive prototypes. 5-axis machining can achieve excellent surface brightness and thin-walled features.
- Titanium alloy (Ti-6Al-4V): With high strength, corrosion resistance, and good biocompatibility, it is an ideal choice for medical implants and aviation engine components. We have a mature 5-axis low-speed re cutting process for titanium alloys.
- Stainless steel (316, 17-4PH, 304): Strong corrosion resistance, suitable for medical devices and food grade parts. 5-axis machining can effectively control thermal deformation.
- Engineering plastics (PEEK, Delrin, Nylon): insulated, wear-resistant, lightweight, suitable for fine electronic and medical non-metallic components. Pay attention to stress release during processing to prevent warping.
- Other advanced materials: Inconel high-temperature alloys, copper alloys and other difficult to machine materials (supporting small batches).
For different materials, we will match exclusive cutting tools, cutting parameters, and cooling strategies to ensure that 5-axis milling parts achieve optimal mechanical performance and appearance quality.
Applications
The high precision and complex shape of 5-axis milling parts make them indispensable in multiple high demand industries：
- Aerospace: turbine blades, impellers, structural supports, engine casings, etc. 5-axis machining can complete aerodynamic surfaces, meeting the strict specifications of AS9100.
- Medical devices: orthopedic implants, surgical tools, prosthetic components. Precision 5-axis milled components made of titanium alloy or PEEK material ensure biocompatibility and accurate adhesion.
- Automotive industry: high-performance engine components, prototype parts, lightweight construction parts. Quickly iterate design to shorten development cycle.
- National Defense and Semiconductors: Fine optical brackets, radar components, vacuum chambers, etc., requiring extreme tolerances and complex internal features.
- Energy and molds: impellers, mold cores, energy equipment components.
Whether your project is prototype validation or mass production, our 5-axis CNC milling services can assist you in reducing assembly complexity, improving part performance, and accelerating product launch.
